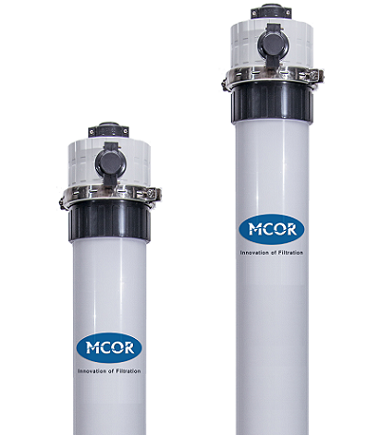

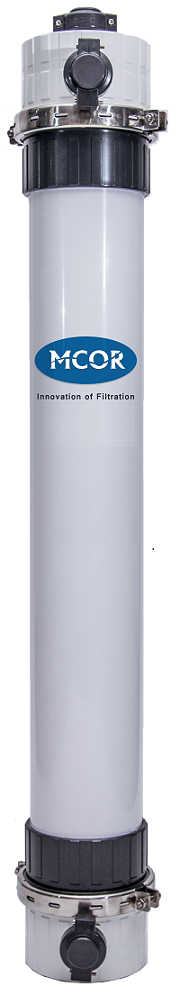

Hydro-60X

Hydro

Our portfolio of products is designed for outstanding membrane separation, extreme productivity and efficiency, exceptional reliability and a small footprint. Our products are proven in more than 900 ultrafiltration installations worldwide in a variety of municipal and industrial water applications. Put simply, we help provide clean water at a lower cost and provide experience you would expect from the leader in separation technologies.

ULTRAFILTRATION PORTFOLIO

Our powerful UF modules incorporate PVDF hollow fiber membranes in an outside-in flow configuration with a 0.03 micron nominal pore diameter making them an excellent choice to protect downstream processes such as RO. The modules provide excellent performance, industry leading membrane area with low energy and chemical consumption, effectively minimizing the number of modules needed for your design. The modules are an excellent choice for high removal capability for viruses, bacteria, suspended solids, colloids and pathogens from water.

MCOR Hydro-60X Advantages:

•Excellent removal of colloids, particles, and bacteria

•Extra high flux membrane with XP fiber

•High surface area for good packing density and small footprint

•Low chemical consumption

•High chemical-resistance PVDF that allows aggressive chemical use for treating challenging water when needed

•Temperature tolerant for more effective cleaning

•Mechanically strong fibers enabling long module life

•Robust design for long life

Applications:

MUNICIPAL WATER, DRINKING WATER MCOR ultrafiltration module supply a clean system solutionfor centralized water supply plant, urban and rural community water plant, food and beverage filed. In the municipal water treatment, MCOR is an advocate and leader of gravity ultrafiltration.
PROCESS WATER TREATMENT MCOR ultrafiltration module provide a stable high-quality process water pretreatment solutions for energy, petrochemical, and metal industry
WASTE WATER TREATMENT MCOR module can be used for industrial and municipal wastewater discharge quality achieve standard, gray water reuse supply strong support.

Specs	Product	Hyro-60X	Hyro-80X
	Structure	Hollow Fiber Out-In
	Fiber	PVDF
	Housing	UPVC
	Cap	UPVC
	OD/ID/T(mm)	1.5 / 0.9 / 0.35
	Pore Size	30 nm
	Filtrate Flux	40~120LMH
	Membrane Area	55m2	78m2
Sizes	L1（mm）	1860	2360
	L2（mm）	1820	2320
	L3（mm）	1630	2130
	D（mm）	225
	Weight(Filled Water)	82Kg	100Kg
	Connector	Feed DN50，Air Rp3/8
Operating Limits	Filtrate Model	Out>In
	Filtrate Time	10 - 60 min
	Backwash Time	30 - 60 s
	Filtratewash Time	30 - 60 s
	Air Scour Flow Time	30 - 60 s
	Maximum Air Scour Flow	5 ~ 12 Nm3/h
	Maximum Tem	1~40℃
	Maximum Inlet Pressure	4 bar
	Maximum Backwash Pressure	2bar
	Maximum Operating Pressure	2bar
	Operating pH	2 ~ 11
	Maximum NaClO	2000ppm
Performance	Expected Filtrate Turbidity	≤0.1NTU
	Expected Filtrate SDI15	≤3

Proper start-up of an ultrafiltration system is essential to prepare the membranes for operating service and to prevent membrane damage. Following the proper start-up sequence also helps ensure that system operating parameters conform to design specifications so that system water quality andproductivity goals can be achieved.

Before initiating system start-up procedures, membrane pretreatment, installation of the membrane
modules, instrument calibration and other system checks should be completed.

Notice: The use of this product in and of itself does not necessarily guarantee the removal of cysts and pathogens from water. Effective cyst and
pathogen reduction is dependent on the complete system design and on the operation and maintenance of the system.
